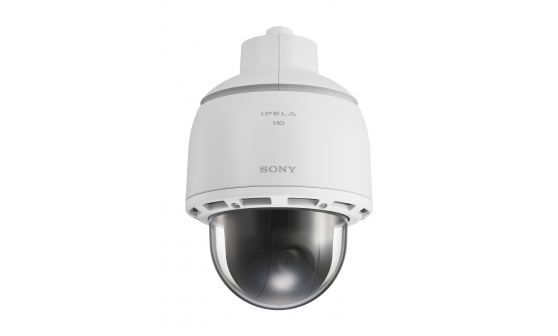

G6 W series -‐ Outdoor 720P HD Rapid Dome 30x optical zoom View-‐DR 130dB max
Spesifikasi :
| IP/Analog | IP |
| Camera Type | 720p/60fps Rapid Dome Camera |
| Type | 720p/60fps Rapid Dome Camera |
| Camera | SNCWR602C |
| Image Device | 1/3-type Exmor™ CMOS sensor |
| Effective Pixels | Approx. 1.37 Megapixels |
| Minimum Illumination | Color: 0.2 lx (F1.6,View-DR OFF,VE OFF, AGC ON,1/30 s,30 fps);B/W: 0.015 lx (F1.6,View-DR OFF,VE OFF,AGC ON,1/30 s,30 fps) |
| Lens Type | Auto-focus Zoom Lens |
| Focal Length | f=4.3mm to 129.0mm |
| F-Number | F1.6 to F4.7 |
| Compression Format | H.264/JPEG |
| Pan Angle | 360° endless rotation |
| Pan Speed | 700°/s (max.) |
| Tilt Angle | 220 degrees |
| Tilt Speed | 700°/s (max.) |
| Day Night | Yes, true Day/Night |
| Wide-D | Yes |
| Zoom Ratio | Optical zoom 30x, Digital Zoom 12x |
| Minimum Object Distance | 300 mm |
| White Balance Mode | ATW, ATW pro, Indoor, Outdoor, Fluor., Merc., Sod. vapor, Metal halide lamp, White LED, 1 push, Man. |
| Horizontal Viewing Angle | 58.3° to 2.1° |
| Exposure Control | Full auto, Shutter priority, Iris priority, Manual |
| Gain | Auto/Manual (-3 dB to +28dB) |
| Image Specifications | Detail: |
|---|---|
| Image Size | Various up to 1280×720 |
| Compression Format | H.264, JPEG |
| Frame Rate | 60 fps |
| Interface Specifications | Detail: |
|---|---|
| Network | 10BASE-T / 100BASE-TX (RJ-45) |
| Serial Interface | RS-422/RS-485 (PELCO D protocol) |
| External Microphone Input | Mini-jack (monaural) |
| Audio Line Output | Mini-jack (monaural), Max ouput level: 1 Vrms |
| General Specifications | Detail: |
|---|---|
| Weight | Approx. 9 lb 6 oz (4.1 kg) |
| Dimensions (W x H x D) | ø222.0 mm x 324.1 mm |
| Finish | White |
| Power Requirements | HPoE+ system, AC 24 V |
| Power Consumption | Max. 30.0 W (AC 24 V/HPoE+, heater OFF) Max. 80.0 W (AC 24 V, heater ON) Max. 55.0 W (HPoE+, heater ON) |
| Operating Temperature | -40 °F to +122 °F (–40 °C to +50 °C) (AC 24 V); -22 °F to +122 °F (–30 °C to +50 °C) (HPoE+) |
| Storage Temperature | -4 °F to +140 °F (-20 °C to +60 °C) |
| Storage Humidity | 20% to 95% |
| Compression | H.264 or JPEG |
| FPS | variable up to 60 |
| Resolution | 1.3 megapixel/720p |
| Watts | Max. 30.0 W (AC 24 V/HPoE+, heater OFF) Max. 80.0 W (AC 24 V, heater ON) Max. 55.0 W (HPoE+, heater ON) |
| Network Specifications | Detail: |
|---|---|
| Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, IPv6, HTTPS, SNMP (v1,2c,3), FTP(Client only), SSL |
| Number of Clients | 20 |
| Authentication | IEEE802.1X |
| System Requirements Specifications | Detail: |
|---|---|
| Operating System | Microsoft Windows XP (32bit), Microsoft Windows Vista (32bit), Microsoft Windows 7 (32/64bit), Windows 8 Pro |
| Processor | Intel Corei7 2.8 GHz or higher |
| Web Browser | Microsoft Internet Explorer 7.0, 8.0, 9.0, 10.0, 11.0, Firefox 19.02, Safari 5.1, Google Chrome 25.0 |
