1/3 type CCD 700TVL eDN fixed 3mm lens

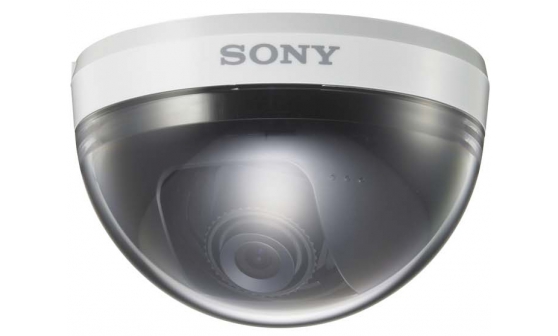

The SSC-N13 analogue minidome camera brings high performanceindoor surveillance within the budgets of today’s security-conscious companies. It offers high quality images through its 750 TV lines horizontal resolution and its high sensitivity of 0.4 lx (F2.0, 50 IRE, Colour), achieved by a 1/3-type “EXview HAD CCD II” sensor and Sony’s new digital signal processor, “Effio-E”.
From its compact body, the SSC-N13 can easily scan a wide area (95.9 degree horizontal viewing angle) with its new three-hinge structure.
The camera utilises a range of technologies to adjust the images to their maximum clarity and usability: Automatic Tone Reproduction Lite (ATR-Lite) compensates for gradation of subjects to an optimum level.
SPESIFIKASI :
| Image Sensor | 1/3-type 960H EXview HAD CCD II |
|---|---|
| Number of Effective Pixels | Approx. 0.57 Megapixels |
| Signal System | PAL |
| Sync System | Internal Only |
| Minimum Illumination (50 IRE) | Color: 0.40 lx (F2.0 AGC ON) B/W: 0.25 lx (F2.0 AGC ON) |
| Minimum Illumination (30 IRE) | Color: 0.20 lx (F2.0 AGC ON) B/W: 0.08 lx (F2.0 AGC ON) |
| S/N Ratio (Gain 0 dB) | More than 55 dB (AGC OFF) |
| Gain | Auto (ON/OFF) |
| Shutter Speed | Auto |
| White Balance | ATW (2000 K to 10000 K) |
| Lens | Monofocal type |
| Powered Zoom | No |
| Powered Focus | No |
| Horizontal Viewing Angle | 95.9° |
| Focal Length | f = 3.0 mm |
| F-Number | F2.0 |
| Minimum Object Distance | 400 mm |
| Pan/Tilt/Rotation Angle (Manual) | 340°/±45.3° 340° |
| IR Illuminator | No |
| Day/Night | Electronic D/N |
|---|---|
| Tone Correction | ATR-Lite: ON/OFF, iBLC: ON/OFF |
| Noise Reduction | 2DNR: ON/OFF |
| Vandal Resistant | No |
| Ingress Protection | No |
