As an industry professional, and because of rising energy costs and the business need for energy-efficient performance, you’ll be looking for ways to reduce costs and consumption. The Eaton 9PX UPS enables you to secure all your mission-critical applications, giving you the reductions in energy usage and costs you need.

Essentially, the Eaton 9PX UPS gives you the chance to optimize power density and minimize capital and operating expenditure, along with the assurance that, should the power go down, critical processes will be maintained in your IT infrastructures and other applications.

Specifications

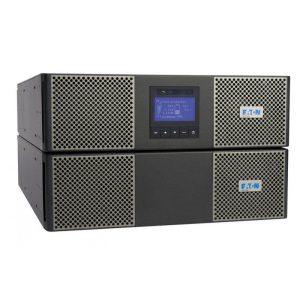

Product DescriptionEaton 9PX 8000i Power Module
Device TypeUPS – Power Factor Correction (PFC) – external
Height (Rack Units) 6U
Rack Size 19″
UPS Technology On-line
Battery Enclosure TypePlug-in module
Input Connector(s) Hardwire
Input Voltage Range AC 176 – 276 V
Power Output Connectors Details 4 x power IEC 320 EN 60320 C19
Interfaces 1 x serial – RS-232 – 9 pin D-Sub (DB-9) 1 x USB – 4 PIN USB Type B Management – EPO (emergency power off)
Power Capacity 7.2 kW / 8000 VA
OS Required Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Dimensions (WxDxH)44 cm x 70 cm x 26 cm
Weight84 kg
