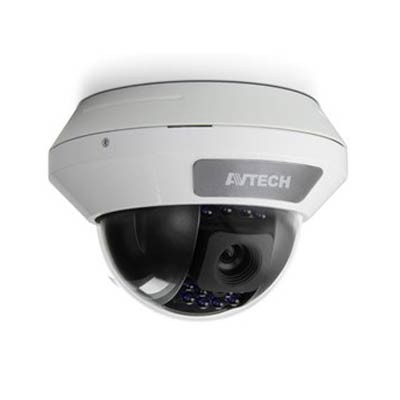

HD CCTV 1080P IR Dome Camera, 1/2.8” CMOS, WDR, External alarm, IR up to 15M
Spesifikasi :
| Lens |
f3.6mm / F1.8 |
| I/O Ports |
External alarm |
| Effective Distance |
Up to 15 meters |
| Pixels |
2 MP |
| IR LED |
12 units |
| Spesifikasi |
- Pick-up Element : 1/2.8″ SONY CMOS image sensor
- Number of Pixels : 1936(H) 1096(V)
- Video Frame Rate : 1080P@30fps / 1080P@25fps
- Min. Illumination : 0.1 Lux / F1.8, 0 Lux (IR LED ON)
- S/N Ratio : More than 48dB (AGC OFF)
- Shutter Speed : 1/10,000 – 1/7.5 (Slow shutter)
- Lens Angle : 87 (Horizontal) / 46 (Vertical) / 104 (Diagonal)
- WDR : YES (120dB)
- Operating Temperature : 0? – 40?
- Video Output : 1.0 Vp-p composite, 75?
- Power Source (10%) : DC12V / 1A
- Optional Peripheral : Wall-mount bracket (PAVM542-BKT(B))
|
| Features |
- 1/2.8 CMOS Sensor with 1080P video output
- External alarm I/O device connection
- WDR to increase image recognizability in overexposure and dark areas
- 3-axis mechanism for flexible ceiling and wall-mount installation
- IR effective distance up to 15 meters for 24-hour surveillance
|
