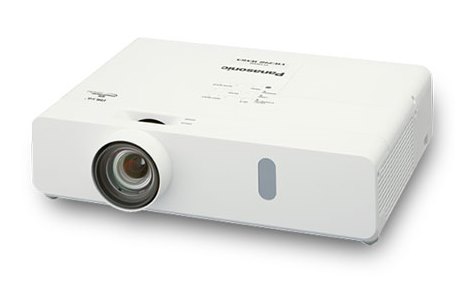

PANASONIC Projector PT-VX420, XGA, 4500 Lumens
Technical Information :

Sumber Daya Listrik100-240V AC, 50/60 Hz
Konsumsi Daya
100-120 V: 310 W, 220-240 V AC: 290 W
(0.4 W when Standby mode set to ECO*1,
1.3 W when Standby mode set to Network,
9 W when Standby mode set to Normal)
LCD
  • Panel size
16.0 mm (0.63 in) diagonal (4:3 aspect ratio)
  • Display method
Transparent LCD panel (x 3, R/G/B)
  • Pixels
786,432 (1024 x 768) pixels
Contrast10,000:1 (Full On/Off) (input signals: PC, lamp power: Normal, picture mode: Dynamic, IRIS: On)
Frekuensi Pemindai
  • HDMI

fH: 15-80 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower

  • RGB

fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 162 MHz or lower
(Signals exceeding the dot clock rate of 140 MHz are downsampled.)

  • YPBPR (CBCR)

fH: 15.75 kHz, fV: 59.94 Hz [525i (480i)]
fH: 31.50 kHz, fV: 60 Hz [525p (480p)]
fH: 45.00 kHz, fV: 60 Hz [750p (720)/60p]
fH: 33.75 kHz, fV: 60 Hz [1125 (1080)/60i]
fH: 28.13 kHz, fV: 25 Hz [1125 (1080)/25p]
fH: 27.00 kHz, fV: 48 Hz [1125 (1080)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1125 (1080)/60p]
fH: 15.63 kHz, fV: 50 Hz [625i (576i)]
fH: 31.25 kHz, fV: 50 Hz [625p (576p)]
fH: 37.50 kHz, fV: 50 Hz [750p (720)/50p]
fH: 28.13 kHz, fV: 50 Hz [1125 (1080)/50i]
fH: 27.00 kHz, fV: 24 Hz [1125 (1080)/24p]
fH: 33.75 kHz, fV: 30 Hz [1125 (1080)/30p]
fH: 56.25 kHz, fV: 50 Hz [1125 (1080)/50p]

  • Video / S-Video

fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/SECAM/PAL-N]

Built-in speaker4.0 cm (1-9/16 in ) round shape x 1, output power: 10.0 W (monaural)
Operation noise37 dB (lamp power: Normal), 29 dB (lamp power: Eco)
Cabinet materialsMolded plastic (PC)
Dimensi (WxHxD) dan Berat352 x 98*4 x 279.4*5 mm dan 3.3 Kg
Operating temperature0-40 °C [32-104 °F] (less than 1,400 m [4,593 ft] above sea level, HIGH ALTITUDE MODE: OFF)
Operating humidity10-80 % (no condensation)
InstalasiCeiling/floor, front/rear
Lamp
  • Lamp

230 W x 1 lamp (240 W driven)

  • Lamp replacement cycle

5,000 h/7,000 h (lamp power: Normal/Eco)

LensManual zoom (1.6x) (throw ratio: 1.2-1.9:1), manual focus, F 1.60-2.12, f 15.30-24.64 mm
Keystone correction range
  • Vertical

±40 ° (±30 ° when using AUTO)
(maximum value of XGA input)

  • Horizontal

±30 ° (maximum value of XGA input)

Terminals
HDMI IN
HDMI 19-pin x 1 (compatible with HDCP, Deep Color)
480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i,
1080/60p, 1080/50p, 1080/30p, 1080/25p, 1080/24p, 1080/24sF,
VGA (640 x 480)-WUXGA (1,920 x 1,200),
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER 1 IN
D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
COMPUTER 2 IN / MONITOR OUT
D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu)
VIDEO IN
Pin jack x 1 (Composite VIDEO)
S-VIDEO IN
Mini DIN 4-pin x 1 (S-VIDEO)
AUDIO IN 1
M3 x 1 (L-R x 1)
AUDIO IN 2 (MIC IN)
M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
AUDIO IN 3
Pin jack x 2 (L, R x 1)
AUDIO OUT
M3 x 1 (L-R x 1) for output (variable)
LAN
RJ-45 x 1 (for network connection, 10BASE-T/100BASE-TX, compliant with PJLink™)
SERIAL IN
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
