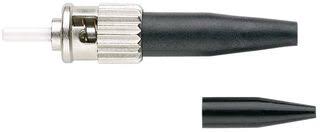

PANDUIT ST multimode, field polish, black boot fiber optic connector

ST Fiber Optic Connectors – Field Polish Termination
• TIA/EIA-604 FOCIS-2 compatible connectors
• Exceed TIA/EIA-568-B.3 requirements
• Insertion loss: .15dB typical (multimode),
.20dB typical (singlemode)
• Return loss: >20dB (multimode), >40dB (singlemode)
• Each connector includes metal connector body/ferrule
assembly, spring, metal bayonet, crimp sleeve, one boot for
900μm buffered fiber, one boot for 3mm jacketed cable and
one dust cap
• Fiber cable type: tight-buffered recommended
• Fiber cable size: 3.0mm jacketed cable or 900μm
buffered fiber
• Ferrule type: 2.5mm zirconia ceramic (highest durability
for repeated matings)
