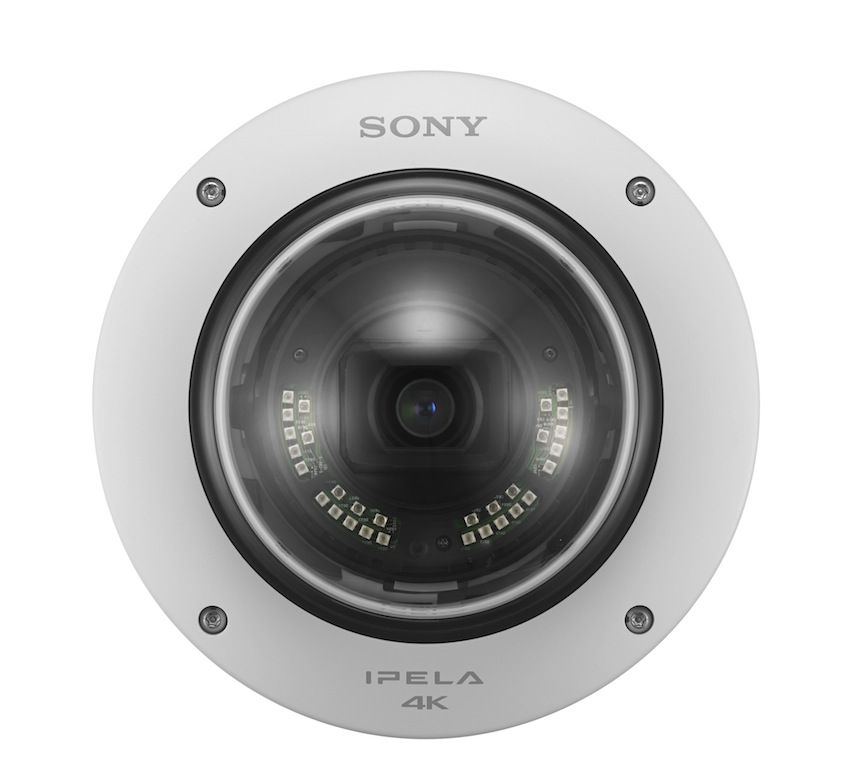

G7 4K series -‐ Outdoor IR Ruggedized MiniDome 4K Camera
Spesifikasi :
| Image Sensor | 1.0-type progressive scan Exmor R CMOS sensor |
|---|---|
| Number of Effective Pixels | Approx. 20 Megapixels |
| Sync System | Internal synchronization |
| Minimum Illumination (50 IRE) | Color: 0.1 lx (F1.8, 1/30 s) B/W: 0 lx (IR LED On, F1.8, 1/30 s) |
| Minimum Illumination (30 IRE) | Color: 0.06 lx (F1.8, 1/30 s) B/W: 0 lx (IR LED On, F1.8, 1/30 s) |
| Dynamic Range | Equivalent to 90 dB with View-DR Technology |
| Gain | Auto/Manual (0 dB to +48 dB) |
| Shutter Speed | 1/1 s to 1/10,000 s |
| Exposure Control | Exposure compensation, AGC, Shutter speed, Iris |
| White Balance | ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual, Indoor, Outdoor |
| Lens | Built-in zoom lens |
| Easy Zoom | Yes |
| Zoom Ratio | Optical zoom 2.9x Clear Image Zoom 2.0x Digital zoom 2.0x Total zoom 11.6x |
| Easy Focus for Setup | Yes |
| Horizontal Viewing Angle | 70.7 ° to 27.5 ° (16:9 aspect ratio) 76.6 ° to 29.8 ° (3:2 aspect ratio) |
| Vertical Viewing Angle | 39.9 ° to 15.7 ° (16:9 aspect ratio) 51.5 ° to 20.1 ° (3:2 aspect ratio) |
| Focal Length | f = 8.8 mm to 25.7 mm |
| F-Number | F1.8 (Wide) to F2.8 (Tele) |
| Minimum Object Distance | 300 mm |
| Pan/Tilt/Rotation Angle (manual) | ±192 ° -10 ° to +81 ° -100 ° to +100 ° |
| IR Illuminator | Yes Wave length (typical): 850 nm, IR LED: 30 pieces |
| IR Working Distance | 50 m (30 IRE) 164.0 ft. (30 IRE) |
| Day/Night | True D/N |
|---|---|
| Day/Night linked with Easy Focus | Yes |
| e-Flip | Yes |
| Wide-D | View-DR |
| Tone Correction | Visibility Enhancer |
| Defog Image Processing | Yes |
| Highlight Compensation | Yes |
| Flicker Reduction | Yes |
| Distortion Correction | Yes |
| Noise Reduction | XDNR |
| Image Stabilizer | Optical |
| Intelligent Scene Capture | Yes |
| Privacy Masking (number) | 24 |
| Privacy Masking (shape) | Quadrangle formed by any four corner points |
| Privacy Masking (color/effect) | Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic |
| Edge Storage | Yes |
| Vandal Resistant | IK10 |
| Ingress Protection | IP66 |
| Superimpose Number | 4 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a logo mark |
| Superimpose Language | English |
