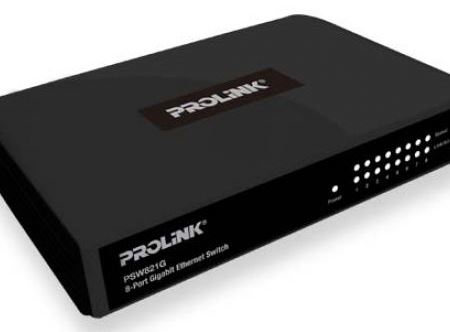

Prolink PSW821G











Technical Information :

Standard
  • IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x
Fixed port
  • 8 10/100/1000M adaptive RJ45 ports
Cable Type
  • 10Base-T: 3/4/5 class of unshielded twisted pair, maximum transmission distance of 100m
  • 100Base-TX: 5 unshielded twisted pair, maximum transmission distance of 100m
  • 1000Base-T: Category 5 unshielded twisted pair over to support the
    maximum transmission distance of 100m
LED Indicator
  • Power, port status (Link / Act) 1 to 8, rate (Speed) 1 to 8
Switching Capacity
  • 16Gbps
MAC address list
  • 4K
Forwarding rate
  • 10Mbps：14880PPS
  • 100Mbps：148800PPS
  • 1000Mbps：1488000PPS
Power specification
  • 7.5VDC 1.5A
Consumption
  • < 12W
Working Temperature
  • 0ºC～40ºC
Storage temperature
  • -40ºC～70ºC
Operating Humidity
  • 10%～90% RH non-condensing
Storage humidity
  • 5%～90% RH non-condensing
Heat dissipation
  • Dissipate naturally
Dimensions175mm*116mm*33mm
Package ContentIncluded

  • 1 x PSW821G
