Technical Information :

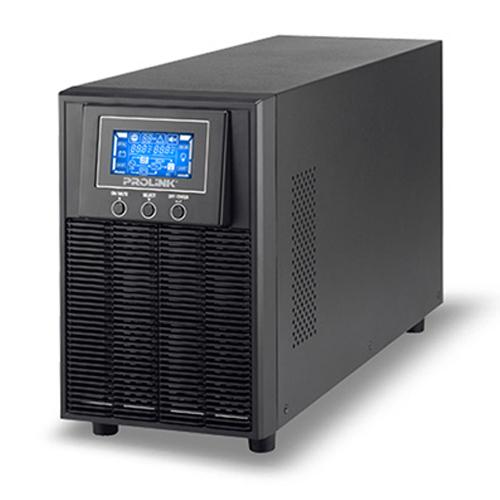

- PROLINK UPS PRO801ES 1P/1P Online UPS 1000VA
- On-Line Double Conversion, 1000VA/800W, PF 0.8, 230V, Single Phase, Tower
- Form Factor : Tower
- Daya Keluar : 1000VA / 800W
- Voltase Masuk
Voltage Range :
Low Line Transfer : 160VAC 5% or 80VAC 5% @ 100% Load, 110VAC 5% or 50VAC 5% @ 50% LoadLow Line Comeback : 175VAC 5% or 85VAC 5% @ 50% LoadHigh Line Transfer : 175VAC 5% or 85VAC 5% @ 50% LoadHigh Line Comeback : 290VAC 5% or 145VAC 5%
Voltase Keluar
Output Voltage : 208/220/230/240VAC or 110/115/120/127VACFrequency Range :
Synchronized Range : 47-53Hz or 57-63HzBattery Mode : 50Hz 0.25Hz or 60Hz 0.3Hz
Harmonic Distortion :
Linear Load : 3% THDNon-Linear Load : 6% THD
Transfer Time :
AC Mode to Battery Mode : ZeroInverter to Bypass : 4ms (Typical)Waveform (Battery Mode) : Pure Sinewave
Baterai
Standard Model :
Battery Type : 12V7AHNumbers : 3Typical Recharge Time : 4 hours recover to 90% capacityCharging Voltage : 41.0VDC 1%
Long-Run Model :
Battery Type : Depending on applicationsNumbers : 3Charging Voltage : 41.0VDC 1%
Indicators :
LCD Panel : UPS Status, Load Level, Battery Level, Input/Output Voltage, Discharge Timer, Fault Conditions
Alarm :
Battery Model : Sounding every 4 secondsLow Battery : Sounding every secondsOverload : Sounding twice every secondsFault : Continuously sounding
Dimensi
Standard Model : 397 x 145 x 220 mm (DxWxH)Long-Run Model : 397 x 145 x 220 mm (DxWxH)
Berat
Standard Model : 13 kgLong-Run Model : 7 kg
